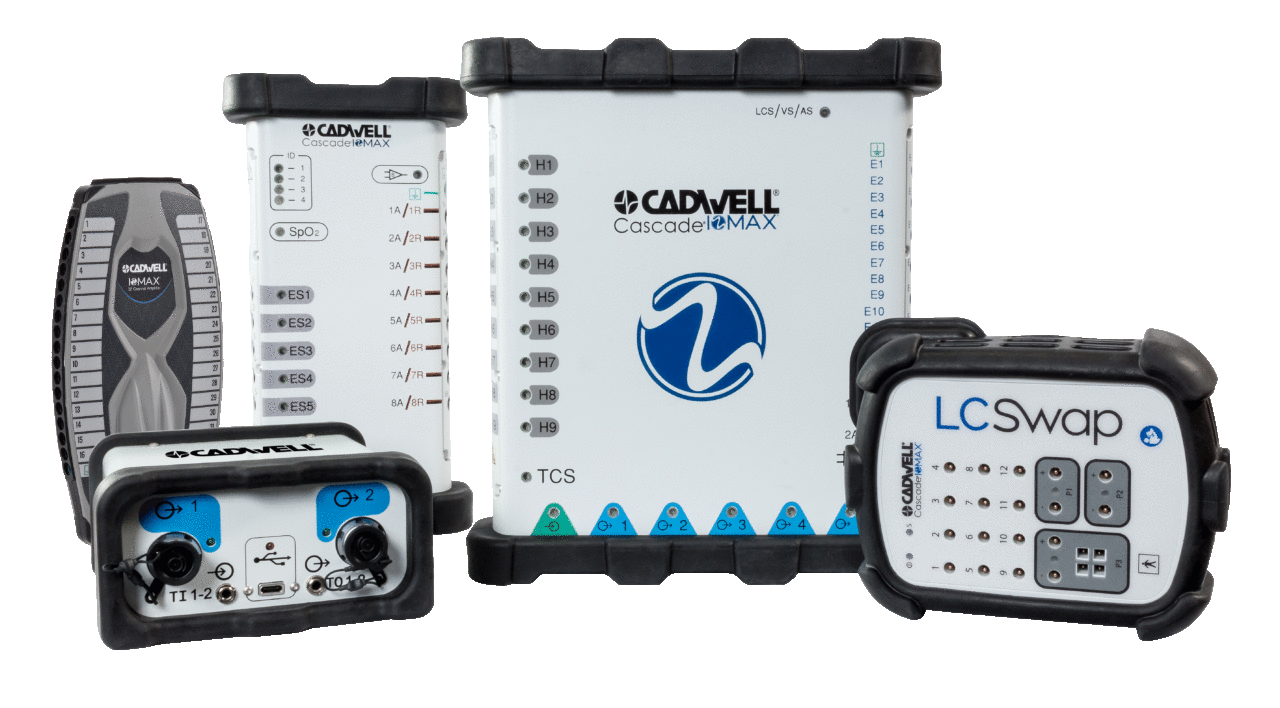

Cascade IOMAX
Cascade IOMAX is a robust IONM system designed to withstand the environmental hazards of the operating room
The modular design of Cascade IOMAX allows users to tailor their IONM setup to the specific requirements of each surgery. The comprehensive design of the Cascade IOMAX with Cascade Surgical Studio software provides seamless multi-modality monitoring, captures critical information, delivers clinical excellence and strengthens documentation.
Flexible channel configurations cover the needs of every procedure type from ENT and orthopedic spine to more complex neurosurgery cases. Cortical and Limb Modules are waterproof and drop-tested with durable rubber bumpers.
The Cascade IOMAX Cortical Module is designed for close proximity to the patient’s head Use the Cortical Module solo, or combine it with up to four Limb Modules. Configure the IOMAX system from eight to 80 channels. The Cortical Module features:
- 16 recording channels
- TCS-9 for dynamic montaging of transcortical MEPs
- Low Current stimulation
- Auditory stimulation
- Visual stimulation
Cascade IOMAX Base Module provides power and communication
…via a single SafeT® cable to the modules at the OR table, and allows Trigger In/Out interfacing with third-party devices.
The IOMAX Limb Module is designed for recording and stimulating the arms and legs
Use one or two Limb Modules independently, or combine one to four Limb Modules with the Cortical Module. Each IOMAX Limb Module offers eight recording channels, five paired E-Stim outputs, SpO2, and heart rate.
The new IOMAX 32-channel amplifier records EEG and direct cortical SSEPs
The IOMAX 32-channel amplifier can be added to any existing IOMAX configuration, or connected directly to the IOMAX Base Module.
LCSwap is a comprehensive switch matrix solution for direct cortical stimulation
Twelve outputs can be independently assigned as anode or cathode; it also includes two paired outputs for hand-held probes.
A single cable connects IOMAX at the operating table to the surgical monitoring technologist station
SafeT® cables are durable and waterproof, with quick-release metal color-coded connectors.
These cables are completely interchangeable between Cortical and Limb Modules and the 32-channel amplifier.
Schedule a Cascade PRO demo to experience our time-tested IONM solution.
• 16 or 32-channels (buy now or upgrade later)
• Dynamic montaging
• All-modality monitoring
• Remote monitoring
The Cascade PRO IONM system’s pod-based design is time-tested and user-approved for dynamic surgical environments
The Cascade PRO is an innovative neuromonitoring solution in a portable, configurable package. Scalable from 16 to 32 channels with one or two amplifiers, the PRO can function as a cart-based or portable system that maximizes user-configuration choices and simplicity.
Monitor all modalities with Cascade IONM: SSEP, EMG, TEMG, MEP, EEG, DWave, BAEP, VEP, TOF, and Video.
Cascade PRO supports:
• Auditory and visual stimulation
• Electrosurgery and noise detection
• Cart-based and portable configurations
• ES-IX 2: High and low current stimulation
• TCS-4/TCS-1000: Transcranial stimulation
• Surge protection
